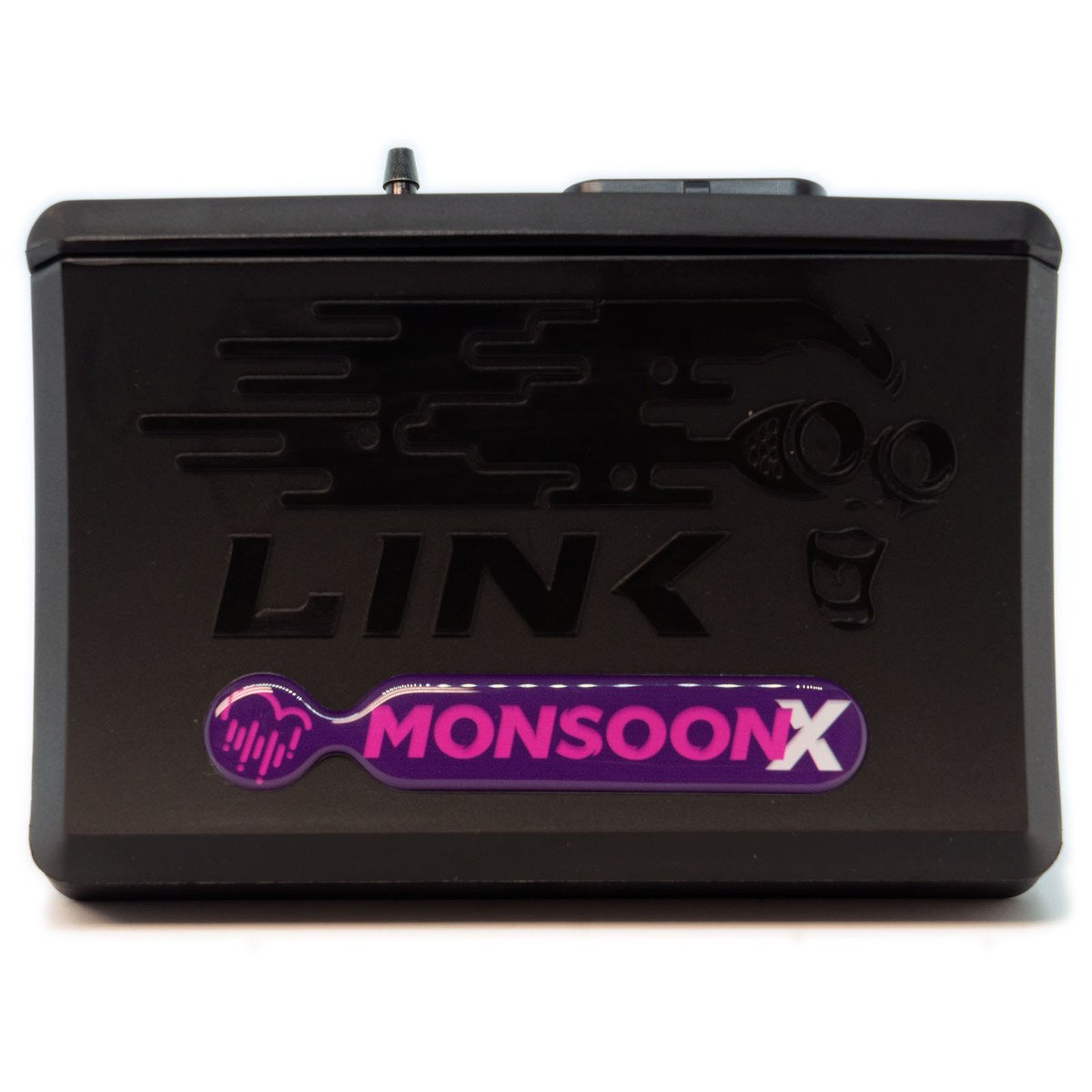

This ECU is our most commonly used ecu when it comes to 3sge Beams engine conversions where a custom loom or tidy install is required.

We can provide all other accessories, juts email us for prices.

SPEC OVERVIEW

The MonsoonX is ideal for:

1-12 Cylinder Distributed

2-8 Cylinder Wasted Spark

1-4 Cylinder Direct Spark

Odd Fire Engines

2-Stroke Engines

Configurable Firing Order

Configurable TDC Points (for odd fire)

Inputs

4 x Digital inputs

2 x Temperature inputs

4 x Analog inputs

2 x Trigger inputs

1 x Knock Input (Shared with DI4)

1 x Onboard 4 Bar MAP sensor

Outputs

4 x Injector drives

4 x Ignition drivers

6 x Auxiliary outputs^

+5V Sensor power supply

^unused ignition drives can be used as additional Aux outputs

Communications

1x CAN bus

1x USB tuning connection

Upgraded communications chip (four times faster than G4+)

Physical:

Dimensions: 95mm(L) x 130mm(W) x 45mm(H) (without loom)

Weight: 220 grams

Advanced features not found on the AtomX:

Antilag, rolling antilag and launch control.

Up to 2 fully variable closed loop VVT cams.

Misc:

512MB of logging memory

20 general purpose tables

Runs on PC Link software for G4X

The MonsoonX comes supplied with waterproof connectors, a mounting bracket and a USB tuning cable. “A Loom” to be purchased separately.
